【Production Description】
AD-1F1E-SFP Industrial Optical Switch, support 1*100M RJ45 ports and 1* 100M SFP port, support DIN-Rail & Wall mounts installation. support power supply input (DC12-52V)，working temperature -40℃~ +80℃，It has passed the industrial environment certification and complies with CE standards. The reliable industrial design can ensure that your automation system runs without interruption and stability.
This series of industrial switches can be widely used in wind, electricity, assembly automation, subway PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation and other industries, is a green low power industrial Ethernet switch.
【Main Features】
Ø Support 1*100M RJ45 ports and 1*100M SFP port
Ø Support IEEE 802.3, IEEE 802.3u Standard
Ø Industrial grade protect design, -40 to 80°C working temperature
Ø High strength iron shell, DIN Rail installation
Ø Support redundant power supply, support anti reverse.
Ø Surge Protection: General 6KV, Differential 4KV; ESD 15KV(Air), 8KV (Contact);

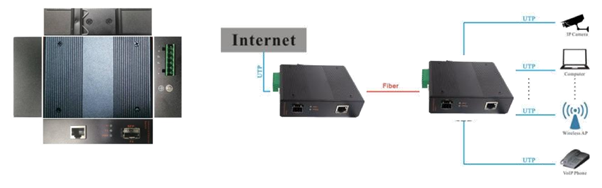

【Application Environment】
◆ Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
◆ Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
◆ Real-time monitoring: simultaneous transmission of real-time control signals, images and data
◆ Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic interference and long distances
【Technical Parameter】
I/O Interface | |
Power | DC （12-52V） |
Ethernet | 1* 100M RJ45 Port 1* 100M SFP Port |
Standard | |
Network Protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) |
Industrial Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz) EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
Network Medium | 100BASE-TX: Cat 5 UTP (≤100 meter) |
Environment Standard | |
Working Environment | Working Temperature：-40~75°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing |
Indicators | |
1 Yellow LED | On: 100Mbps data transmit |
PWR | On: Power on Off: Power off |
1-2Green LED（Link & Data) | On：Connecting Flashing：Data Transmit Off：Disconnect |
Physical Features | |
Dimension | Product Dimension：117*86*33mm N.W： 0.36KG |
Power Voltage | Input Voltage: DC 12-52 V Type of input: 6 PIN Industrial Terminal (block P1+P1- P2+ P2-) |
【Physical structure】
L×W×H: 117(L)×86(W)×33(H)mm
